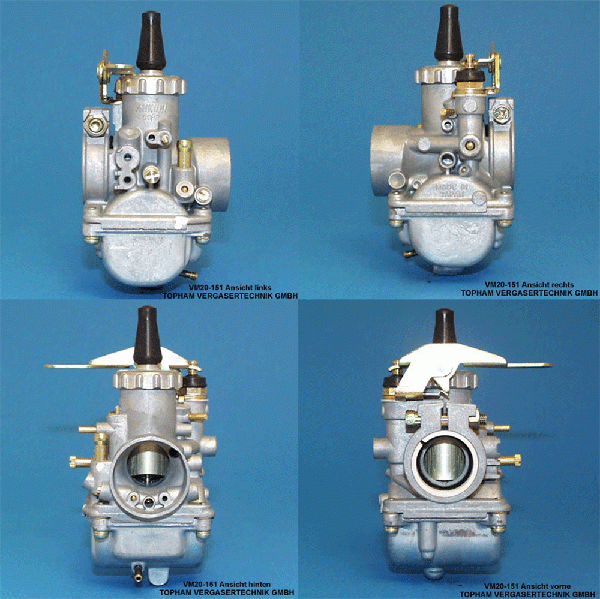

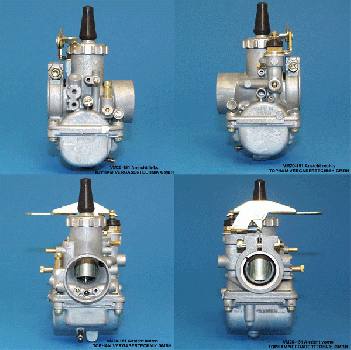

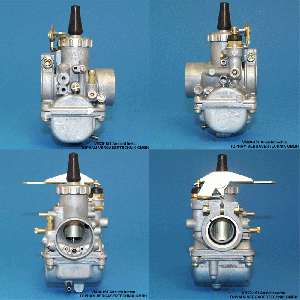

KAASUTIN VM20 KLEMMARIKIINN.

VM20-151



  • Hinta:
    141,70 €
Määrä

Size / Setting

Part number

Main jet

65

4/042-size

Pilot jet

30

VM22/210-size

Needle jet

O-6 ( 145 )

VM15H1/17-size

Jet needle

4DH11-3

J8-size

Starter jet

fixed

-

Pilot air screw

1,5 turns out

VM20/305

Main air jet

fixed

-

Throttle valve

2,5

VM20/565-size

Needle valve

1,5

VM15/172-size

Float height

22mm

-

Choke position
Left/ lever
Idle screw position
Left
Air screw position
Left
Front spigot diameter
26mm
Rear spigot diameter
35mm
Overall length
67mm
Bore centreline to top of carb
60mm
Bore centreline to bottom of carb
55mm
Fuel inlet position
Left
